Pre Engineered Metal Building Architecture: Frame, Envelope and Design Basis
Design codes for a pre-engineered metal building (PEMB) follow the destination country and the project engineer, with AISC 360, EN 1993, AS 4100, AS/NZS 1170 and GB 50017 as the common choices. A building is described as designed to a code, not certified to it.
Frame system

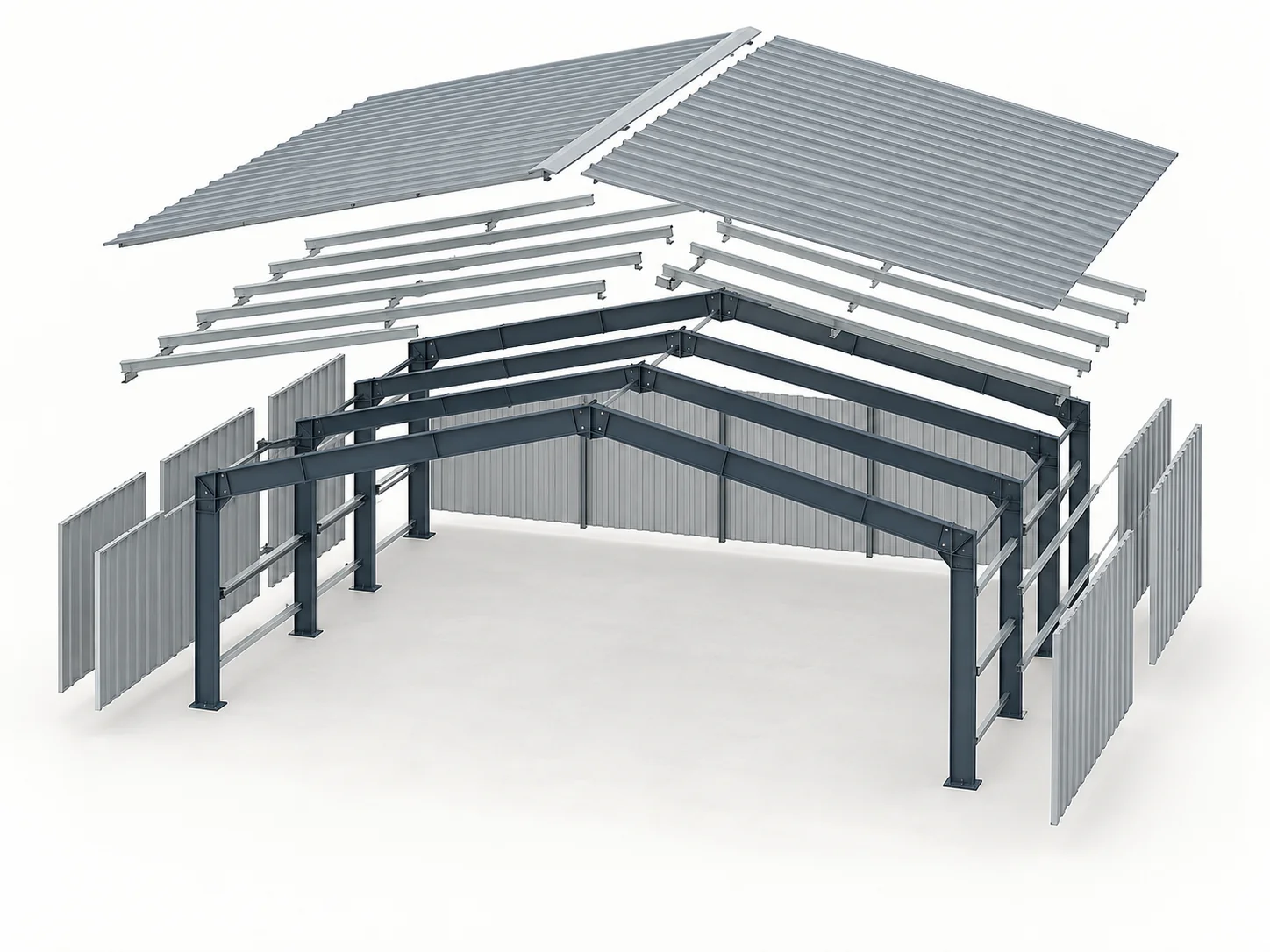

Single-span frames run without interior columns, and multi-span frames add interior columns. Primary and secondary framing, roof and wall panels and accessories make up the kit.
Members and coating
Primary frames use Q355B welded H-section steel, with Q235B or Q460 available. Secondary members are galvanized Z and C purlins, and panels are 0.5 mm profiled steel sheet. Sa2.5 blasting with epoxy zinc-rich primer protects the steel, and hot-dip galvanizing is optional.
Design basis and tools

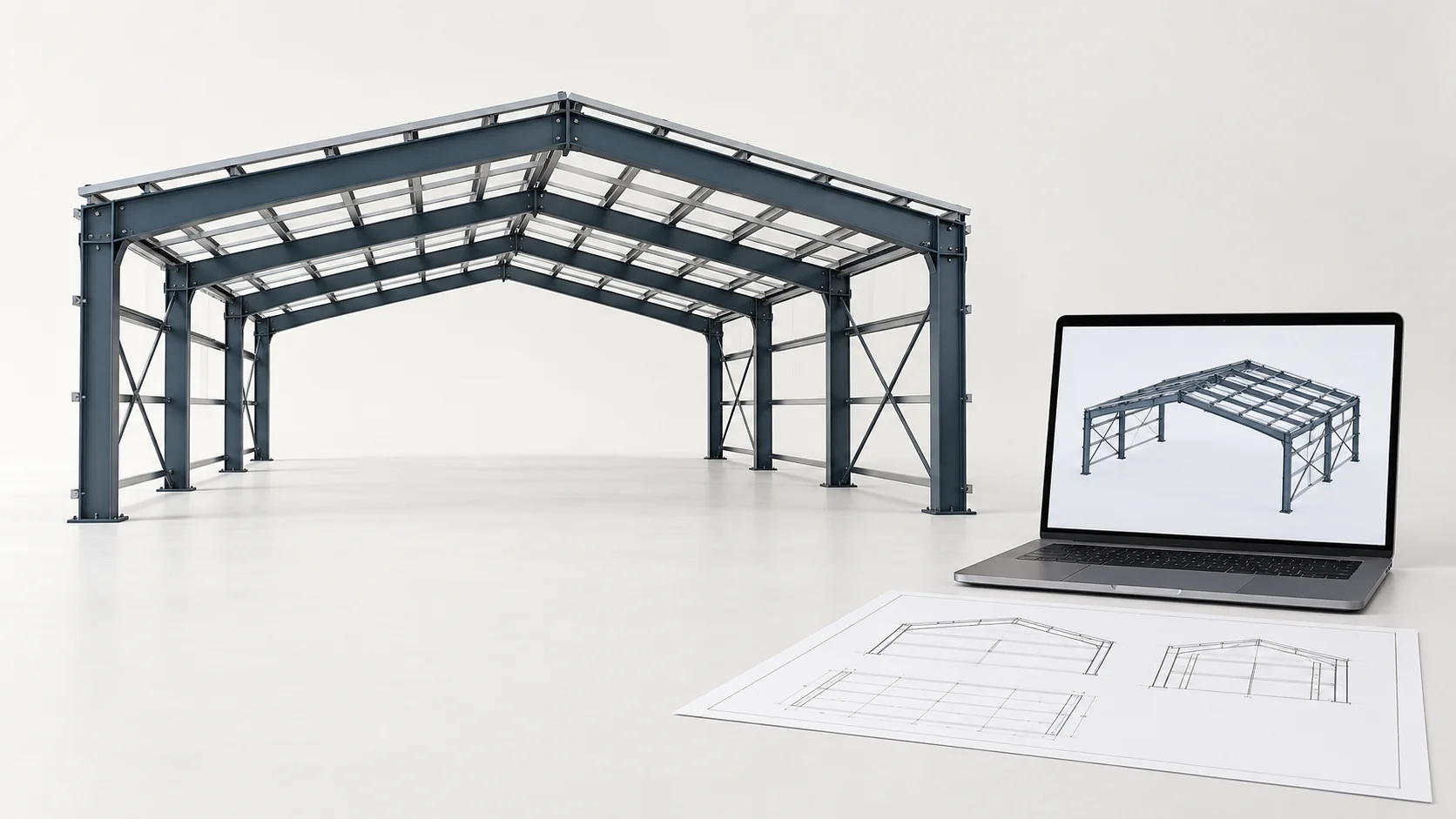

Loads, spans and coatings are engineered to the code that applies at your site, and high wind or snow zones get heavier frames and denser purlins. We model the structure in Tekla 3D, and construction drawings are issued from that model.
Responsibility boundary
The buyer arranges foundation design and construction locally, and column base reaction data is provided. The quote excludes foundation, on-site erection, ocean freight, customs clearance, duties, taxes, insurance, inland transport, permits and site preparation. Local professionals confirm the final structural, mechanical, electrical and civil design.
PEMB Design Inputs: What to Send Before We Quote
Single-span frames normally reach 60 m clear span, and spans up to 100 m are designed per project. Eave height runs 6–12 m and can be raised, while column spacing of 6–9 m can follow your racking layout. Choose a single span when you need column-free floor space, and a multi-span frame when interior columns are acceptable.
Project and site
Send the building type and use, the site country and city, and whether the site is a high wind or snow zone.
Size and frame
Send width × length × eave height, single or multi-span layout, crane tonnage and any mezzanine.
Envelope and price drivers
Add insulation requirements and door and window counts. Span, wind and snow loads, crane tonnage and local code drive the price, together with insulation, openings and mezzanine.
Handover to local erectors
An installation manual and free remote guidance support your local crew, and on-site installation guidance is optional. On-site installation itself is not in the quote.
A local steel contractor is the simpler choice for buildings under 3,000 m², or for projects that need the supplier to carry foundation and erection under one turnkey price. Our kits start from 3,000 m².
Send the building type, width × length × eave height and site country, and we return a free layout, specification and itemized quote.
Pre Engineered Metal Building Design Guide: Drawings, 3D Model and Inspection Records

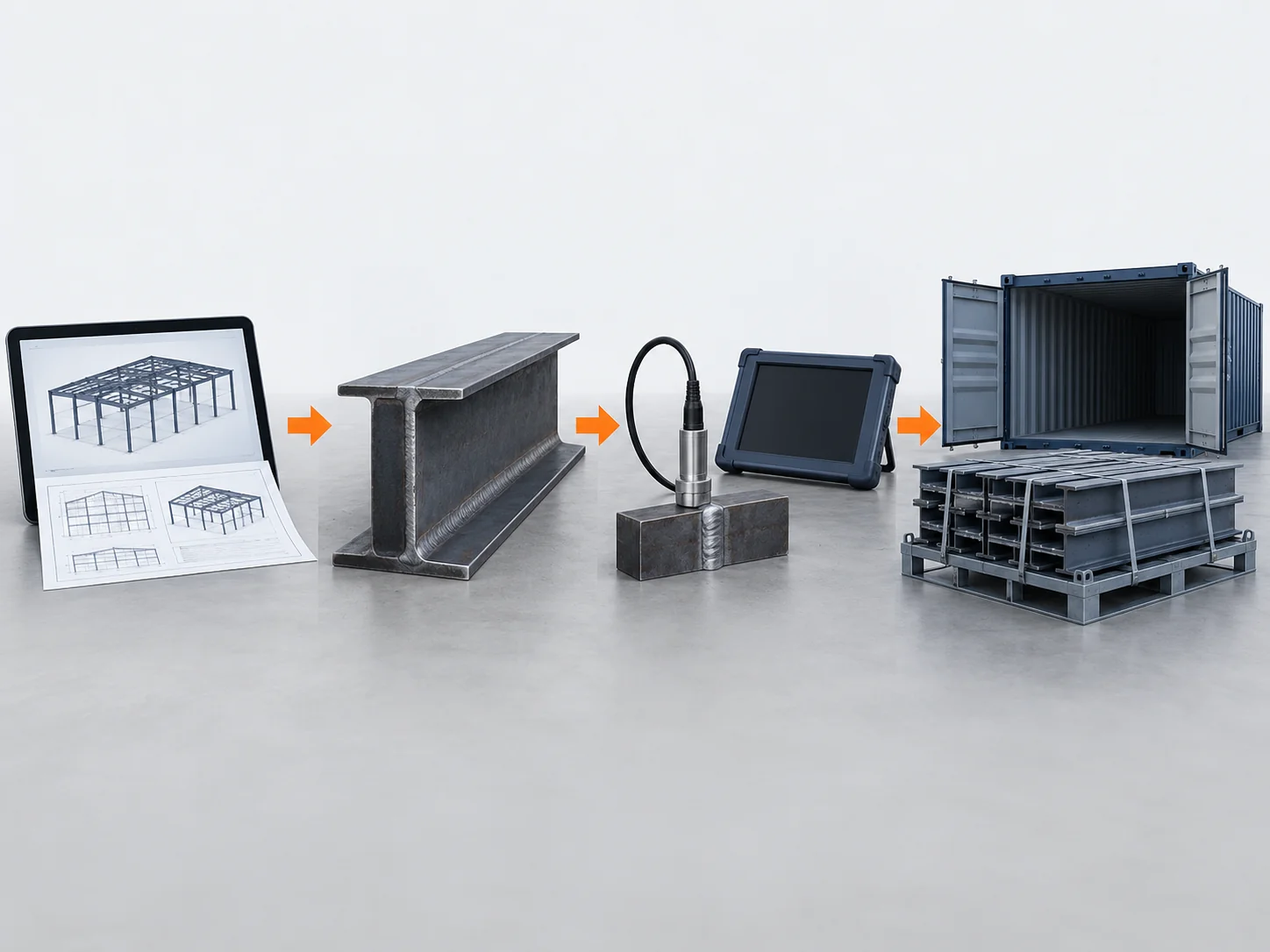

A pre engineered metal building design package gives the buyer three records to review: the Tekla 3D model, the construction drawings and the inspection reports. We send the 3D model for your confirmation before cutting steel, and construction drawings and the installation manual ship with the order. Main welds are ultrasonically tested (UT) and coating thickness is measured, with the UT report and photos sent before you pay the balance. Capacity totals 12 production lines, four factories and up to 150,000 tonnes a year.
Metal Building Architecture by Building Type
Pre engineered metal building design priorities shift by building type, so each card below names one design variable and links to the type page for detail.
Steel Warehouse Buildings

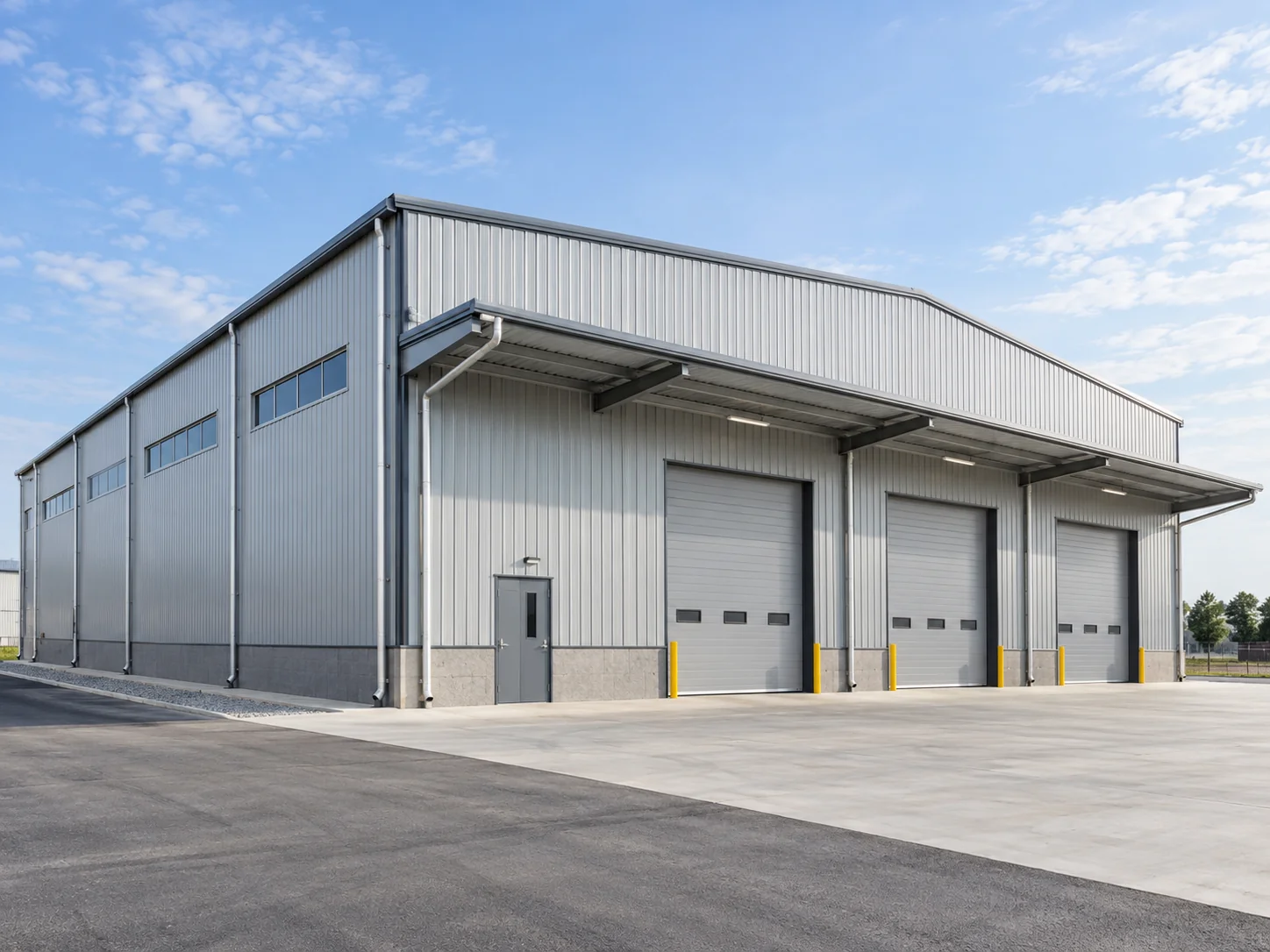

Xinguangzheng has supplied a warehouse in Australia and a pharmaceutical warehouse in Algeria. Bay layout can be adjusted to your racking plan.
Column spacing 6–9 m, adjustable to racking
Cold Storage Buildings

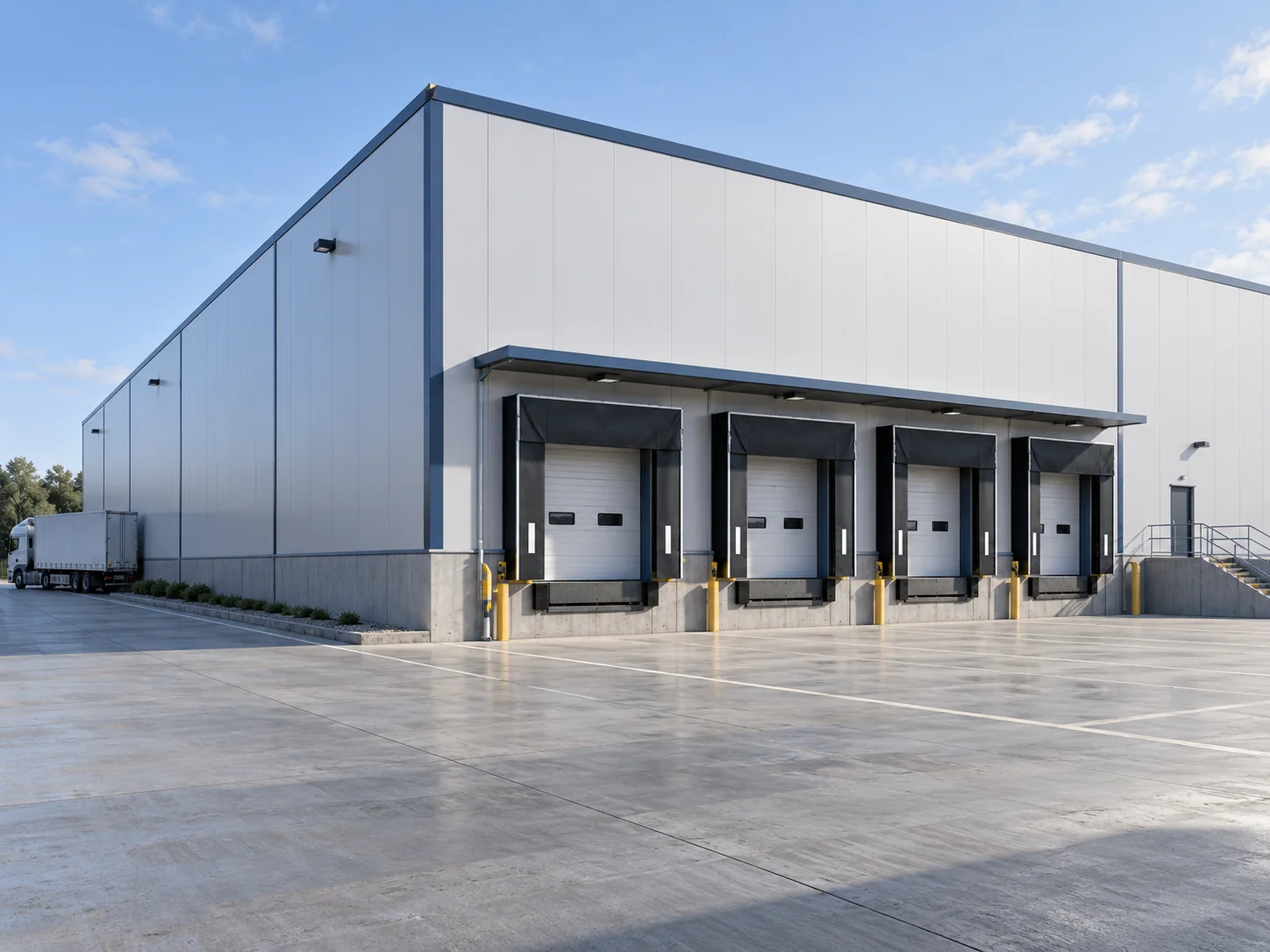

Cold storage walls and roofs use polyurethane sandwich panels, while panel thickness and thermal values are not published on this page, so ask for them with your quote request.
Sandwich panel envelope, PU option
Industrial Steel Buildings
Xinguangzheng has supplied industrial buildings in Algeria, Ethiopia, Pakistan, Sri Lanka and Jamaica.
Clear span normally up to 60 m
Steel Workshop Buildings
Workshop frames can reserve crane capacity, and Xinguangzheng has supplied workshops in Uruguay and Algeria.

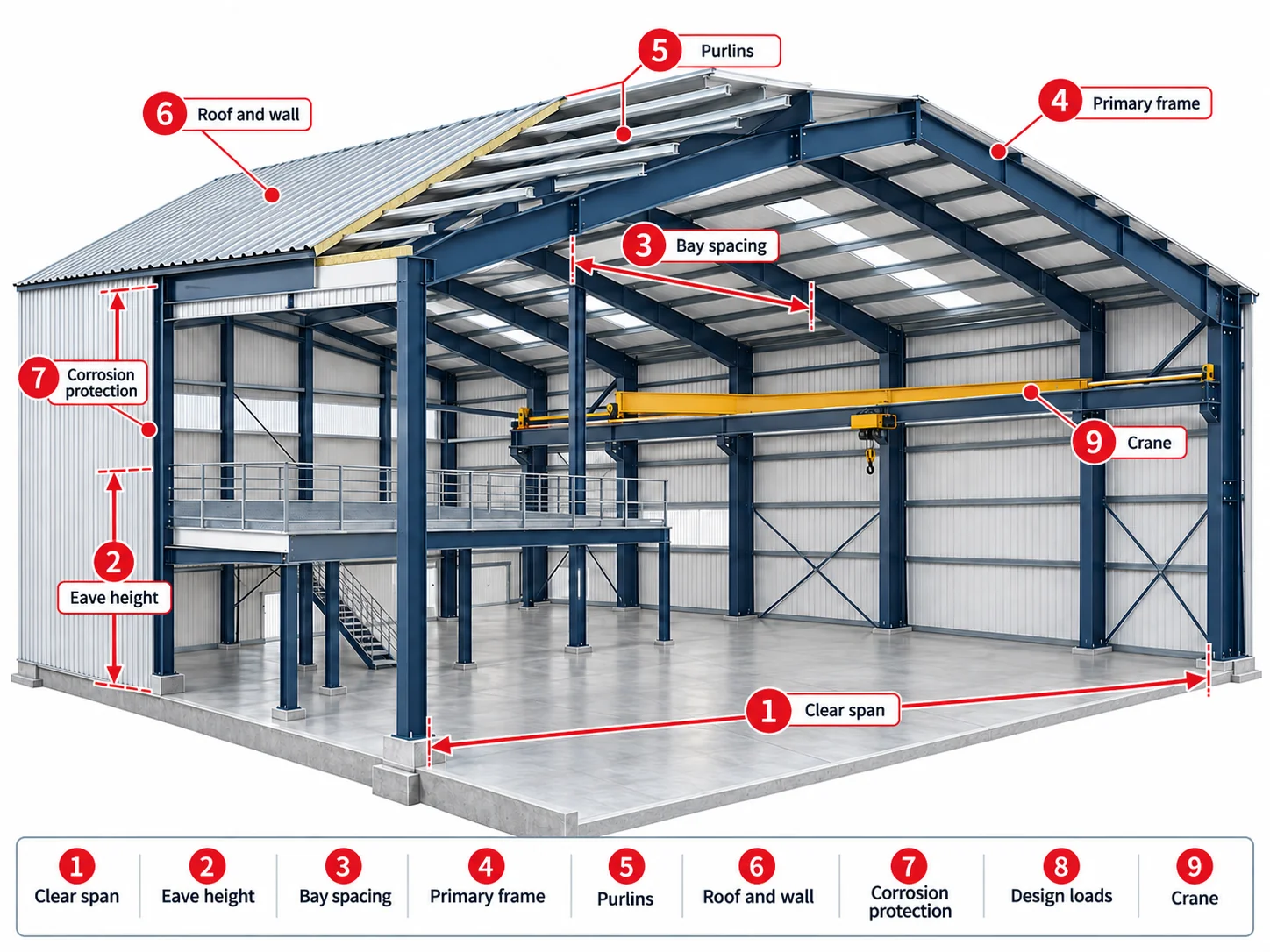

Crane reserved at 5 t, 10 t or 20 t
Commercial Metal Buildings

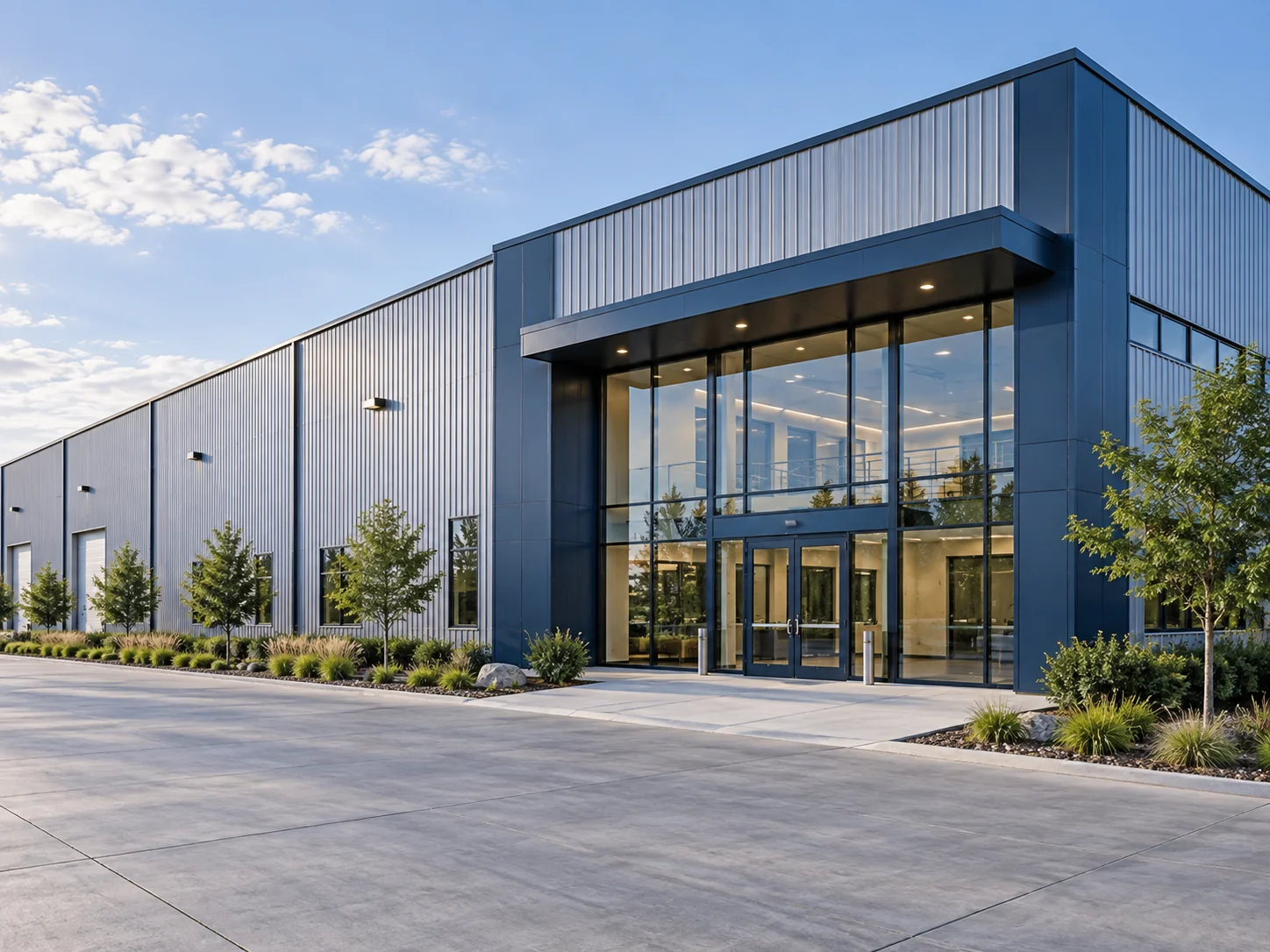

Xinguangzheng has supplied a supermarket in Angola and showrooms in Uruguay, Brazil, the Netherlands and Aruba.
Projects from 3,000 m²
Metal Office Buildings

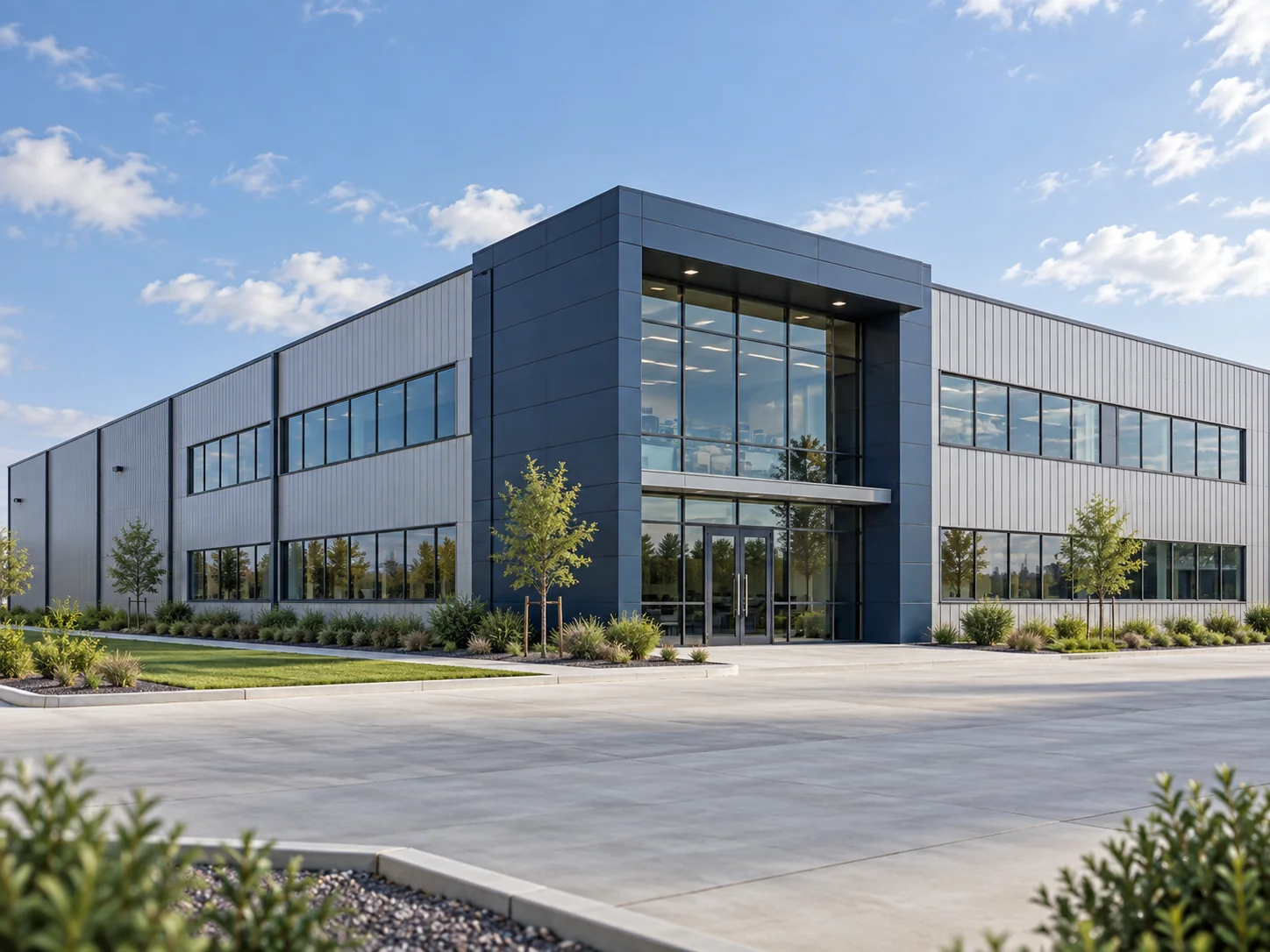

Xinguangzheng has supplied an office building in the Solomon Islands and a workshop office in Algeria.
Structure designed per project
Steel Aircraft Hangars

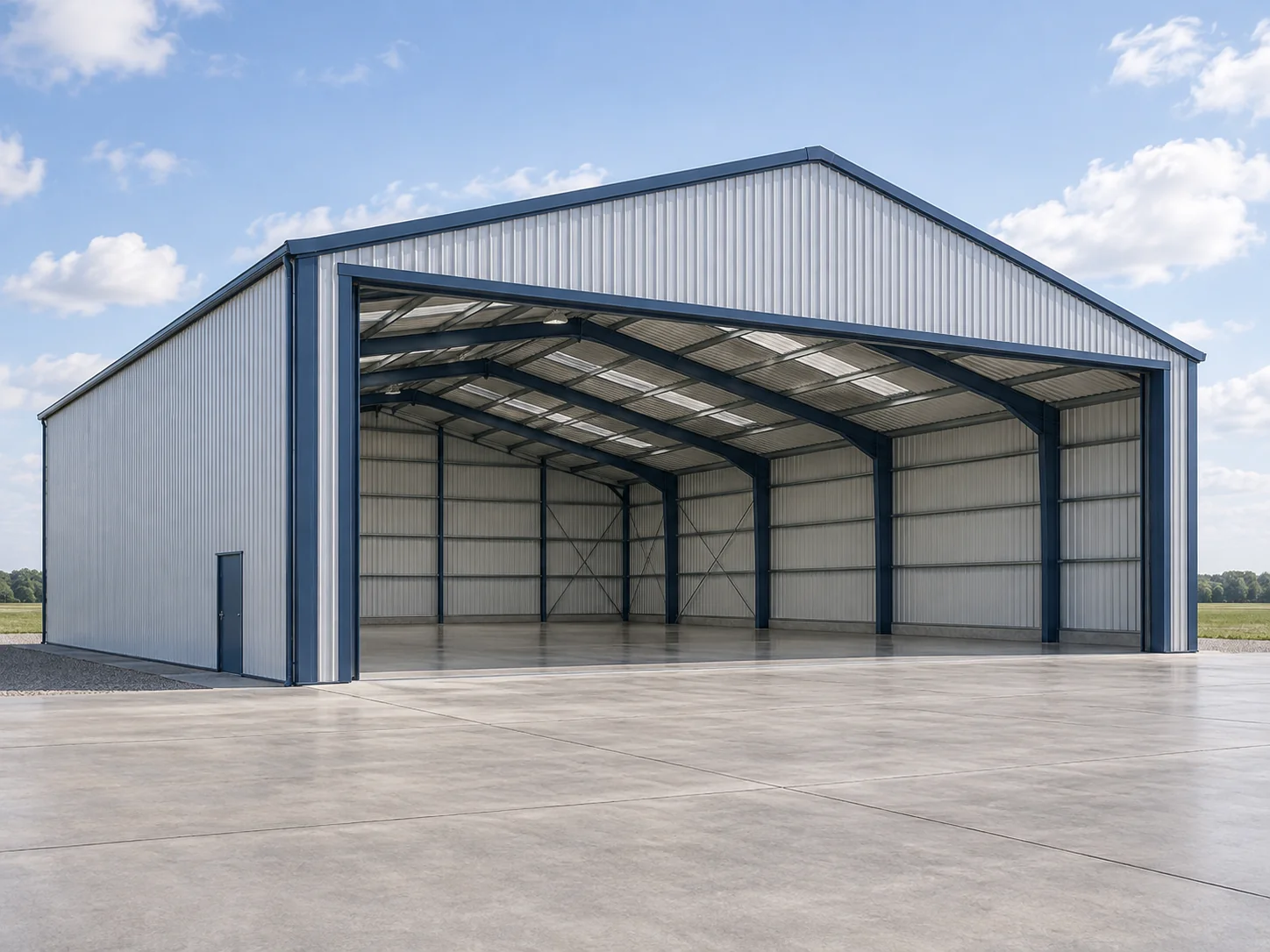

Xinguangzheng has supplied an aircraft hangar in Australia.
Clear span normally 60 m, up to 100 m by projectAnother building type
For another use, send the use, width × length × eave height and site country, and the quote follows.
Free layout, specification and itemized quoteRequest a quote
